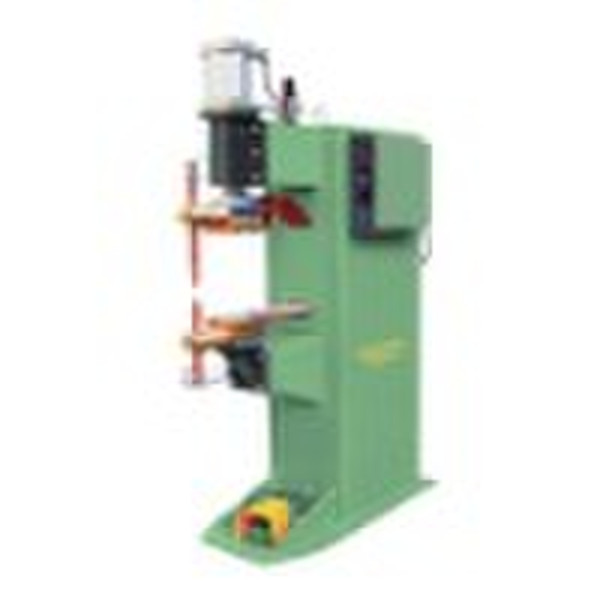

Spot/Projection Welder

DTN Pneumatic Type Spot/Projection Welder PerformanceFeature and Application 1.The machine controlled by semiconductor integrate circuit can work in high accuracy 2.Six procedures within welding process which are squeezing, welding holding, welding, holding and off, can be adjusted from 0 to 99 cycle 3.The control system provides 40% to 100% fine adjust for welding current 4.The control system possesses power factor self-adapting function 5.Electrode force is adjustable and can be kept constantly Parameter 1.Power voltage:380V 2.Rated frequency:50HZ 3.Rated capacity:25KVA 4.Rated input current:66A 5.Duty cycle:50% 6.Open circuit voltage:0.5 to 4.0 V 7.Welding thickness:2.5+2.5mm 8.DImensions:820*440*1420mm 9.Weight:350kg
